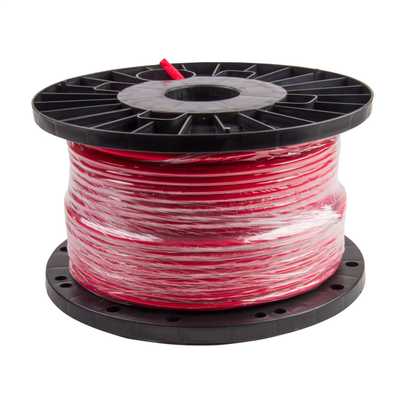

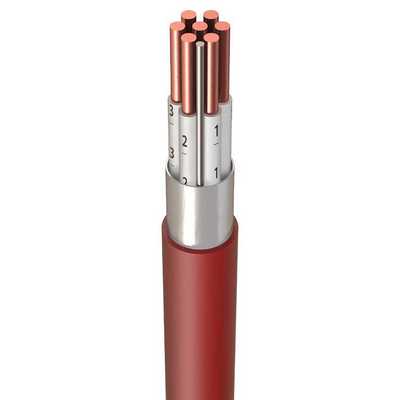

1.5mm² Fire Performance Cable 7 Core and Earth Red (100m Drum)
0006-2023- Cable is produced using the latest technology, materials and equipment
- Every detail from start to finish is recorded and traceable, a quality batch and test number is printed on every reel, and time and date of manufacture printed along the entire length of the cable
- Cable cores are twisted during manufacture to provide the highest level of data protection, ideal for long cable runs and analogue addressable fire systems
- All in one - easy strip outer sheath
- Cable has superb working flexibility but stays where you put it, reduced installation time and costs
Show more
Specifications
| Available Options | Other colour sheaths are available to order |
|---|---|
| Colour | Red |
| Compliance | BASEC, LPCB |
| Cross Sectional Area | 1.50mm² |
| Dimensions | (L)100 m |
| Flame Retardent | Yes |
| Guarantee | 10 Years |
| Length | 100m |
| Logistics Partner | NONE |
| Material | Aluminium / Co-polymer Foil Screen |
| Number Of Cores | 7+E |
| Obsolete Iso | 2019-04-05 |
| Packaging Types | Reel |
| Punchout | No |
| Sheath | Low Smoke Halogen Free Thermoplastic |
| Similar Stock | No |
| Standards | BS 5839-1 : 2002 + A2 : 2008 Clause 26.2d, BS EN 50200 : 2006 + Annex E 30 mins, BS EN 50200 : 2006 PH120, BS 7629-1 : 2008, BS 6387 : 1994 Clause 11 CWZ, BS EN 50267-2-1 : 1999, BS EN 61034-2 : 2005 |
| Suitable For | Air Conditioning, Computer Control and Lifts Doors where Low Smoke & Zero Halogen is Required |
| Type | 1.5mm 7 Core and Earth Red |
| Unspsc V13 | 26121640 |
| Unspsc V18 | 26121640 |
| Unspsc V22 | 26121640 |
| Unspsc V24 | 26121640 |
| Voltage Rating | 500V 300V |
| Weight | 0.228kg |
