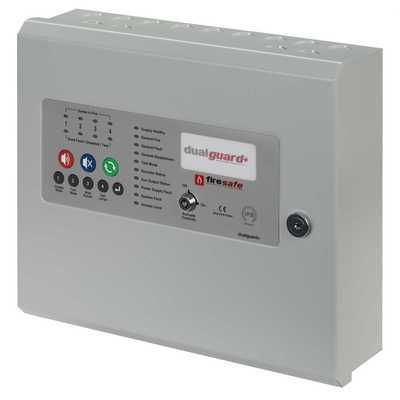

4 Zone 2 Wire Fire Panel with Batteries
2546-6746- False alarm management modes
- Fire and fault relays
- One man walk test
- Non latching zones
- Two wire mode saves up to 40% in installation costs by allowing audio visual devices to be connected to the same pair of cables as the detectors and call points
- Two wire mode requires Dualguard+ detector bases and call points
- Class change inputs
- Flushing bezel available FSDGBS (to be ordered separately)
Show more
Specifications
| Battery Type | Sealed Lead Acid |
|---|---|
| Depth | 80mm |
| Dimensions | (H)260 mm x (W)308 mm x (D)80 mm |
| Guarantee | 3 Years |
| Height | 260mm |
| Logistics Partner | NONE |
| Number Of Sounder Circuits | 2 |
| Number Of Zones | 4 |
| Packaging Types | Each |
| Similar Stock Code | FIA-2WCP-4ZONE-ZZZ |
| Standards | BS EN 54 |
| Supplied With | 2 x 3.2Ah 12v Sealed Lead Acid Batteries |
| Unspsc V13 | 46191505 |
| Unspsc V18 | 46191505 |
| Unspsc V22 | 46191505 |
| Voltage Rating | 230V |
| Weight | 4.5104kg |
| Width | 308mm |
