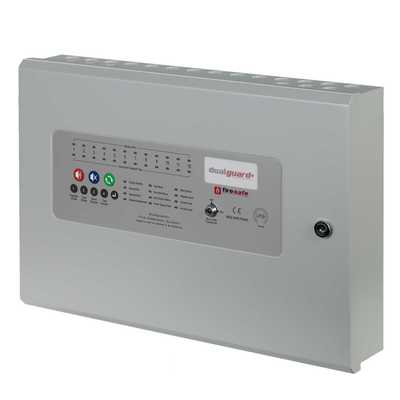

8 Zone 2 Wire Fire Panel with Batteries
2546-6749- 3 modes to manage false alarms
- Non latching zones
- Set delays to outputs
- Two indepdent programmable inputs
- All outputs relays and sounder circuits are independently programmable
- Two wire mode saves up to 40% in installation costs by allowing audio visual devices to be connected to the same pair of cables as the detectors and call points
- Two wire mode requires Dualguard+ detector bases and call points
- Network up to 8 control panels
- Flushing bezel available FSDGBL (to be ordered separately)
Show more
Specifications
| Battery Type | Sealed Lead Acid |
|---|---|
| Depth | 85mm |
| Dimensions | (H)310 mm x (W)460 mm x (D)85 mm |
| Guarantee | 3 Years |
| Height | 310mm |
| Logistics Partner | NONE |
| Number Of Sounder Circuits | 4 |
| Number Of Zones | 8 |
| Packaging Types | Each |
| Standards | BS EN 54 |
| Supplied With | 2 x 7.0Ah 12v Sealed Lead Acid Batteries |
| Unspsc V13 | 46191505 |
| Unspsc V18 | 46191505 |
| Unspsc V22 | 46191505 |
| Voltage Rating | 230V |
| Weight | 9.4624kg |
| Width | 460mm |
